Plan your vinyl fence with clear measurements, the right post roles and a complete quote checklist. Follow these four steps to turn a rough sketch into a useful materials inquiry.
SKETCH & MEASURE
A simple drawing is enough. Work around the boundary in order, label each run, and keep gate openings separate. These details make a vinyl fence materials quote easier to review.
A / FENCE RUNS
Give each run a letter and record its length. Mark the start, finish and every change of direction. Use one unit of measurement throughout your sketch.
B / GATE OPENINGS
Record the opening you want, the number of gates and the swing direction. Flag nearby walls, paths or obstructions that could affect the opening.
C / STYLE & FINISH

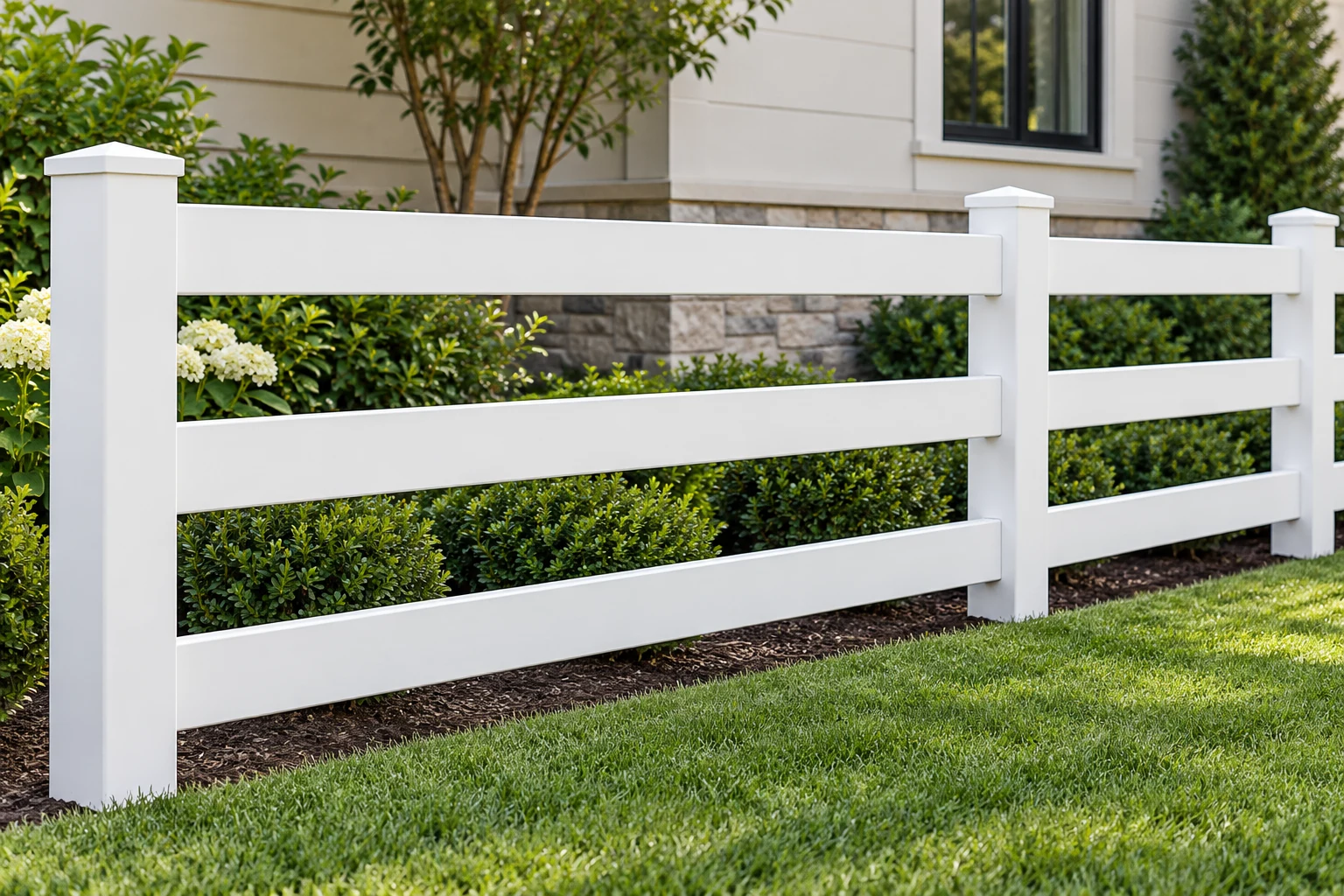

Choose privacy, semi-privacy, picket or post & rail. Add your preferred height and color, and note whether you need a new system or parts for an existing fence.
CONNECT THE SYSTEM
Separate the measurements first. Then mark the role of each post so rails, infill and gate hardware can be reviewed as one compatible system.
EXAMPLE FENCE SKETCH · TOP VIEW
← Run A · 40 ft →
↑
Run B
24 ft
↓
End post
Corner post
Gate opening
4 ft
Gate
posts
↶ Gate swing
Site note:
Ground slopes
along Run B.
1. Draw each straight run → 2. Add measurements → 3. Mark gates and site conditions
Example only—not to scale. Record gate openings separately from fence runs. Final post spacing depends on the selected system.
Definition
A post that terminates a vinyl fence run, typically with rail connections on one face.
Purpose
Secures the final section and provides a finished stopping point.
Common uses
Definition
An intermediate post between two fence sections continuing in a straight line.
Purpose
Joins adjacent sections and keeps rails and panels aligned.
Common uses
Definition
A post that connects fence runs at a change of direction; routed versions commonly serve a 90-degree turn.
Purpose
Provides connections for adjoining runs and establishes the corner of the layout.
Common uses
Definition
A post at a gate opening configured for hinge or latch hardware.
Purpose
Supports the gate and its hardware; reinforcement must follow the gate system requirements.
Common uses
Compare the role of each post in a vinyl fence system. Post names describe their position and connections; they are not universal strength ratings.
Post Type
Primary Function
Typical Location
Structural Strength
Post Type
End Post
Primary Function
Terminates and supports a fence run
Typical Location
Beginning or end of a fence
Structural Strength
System-dependent; specify for the end condition
Post Type
Line Post
Primary Function
Connects and supports adjacent sections
Typical Location
Intermediate points along straight runs
Structural Strength
System-dependent; sized for panel and site loads
Post Type
Corner Post
Primary Function
Connects runs at a change of direction
Typical Location
Fence corners and turns
Structural Strength
System-dependent; corner connections must suit the layout
Post Type
Gate Post
Primary Function
Carries hinge or latch hardware for a gate
Typical Location
Sides of gate openings
Structural Strength
Gate-specific support; reinforcement may be required
Confirm post profiles, connections, reinforcement and foundations for the selected fence and gate system. A corner post is not automatically stronger than a line post, and a standard end post is not automatically suitable for carrying a gate.
NOTE THE SITE DETAILS
GROUND
Mark sloping runs, steps and changes in ground level. Add a photo or a short note showing where each change occurs.
CONNECTIONS
Describe the intended mounting surface. Mark walls, paving, nearby structures and the space needed for gate movement.
MATCHING PARTS
For replacement parts, provide photos and any known brand, profile or dimensions. Similar-looking parts may use different routing or connections.
Before finalizing your layout
Confirm the intended boundary and any project-specific requirements with the appropriate local professional. This guide helps prepare a supply inquiry; it is not an installation or structural design.
PREPARE YOUR INQUIRY
Gather what you know and clearly mark anything still to be confirmed. You can use the form below to send the key details.
✓ Style, height & color
Tell us your preferred appearance and screening level.
✓ Labeled runs & post roles
List each run length, corners, ends and changes in direction.
✓ Gate details
Include opening widths, quantity and intended swing.
✓ Site or replacement details
Describe slopes, mounting surfaces or parts you need to match.
✓ Delivery ZIP
Provide the project destination for freight review.
✓ Access & receiving
Flag vehicle-access limits and receiving constraints.
✓ Project timing
Share your preferred timing so it can be reviewed.
✓ Questions still open
List dimensions or selections that need confirmation.
Requested dimensions, finishes, availability, freight and supplied scope are confirmed in the written quotation.
PUT YOUR SKETCH TO WORK
Use your sketch to list each run length, corner and gate opening in the form. Add slope, mounting and delivery details to help us understand the materials your layout may need.
Keep gate openings separate from fence-run measurements. Note any dimensions that still need checking.
